Episode ECA-70MIXAMP-1-240D 70V Class D Mixer-Amplifier with Bluetooth | 240W x 1 Channel
$1,449.99
2 in stock (can be backordered)
2 in stock (can be backordered)
37 in stock (can be backordered)
Episode 70V Commercial Mix-Amps
Perfect for light commercial applications, Episode® 70V Mixer-Amplifiers are designed to meet all your background music and paging needs. With 7 inputs for microphones and line-level sources – plus Bluetooth input for easy source integration by end users – these amplifiers are versatile and user-friendly. They also feature XLR microphone inputs with independent priority modes for seamless audio “ducking,” ensuring clear communication. The Class D amplification delivers pristine sound, even at high volumes, while conserving power. An integrated mixer ensures seamless audio blending. Plus, their compact 1RU form factor saves valuable rack space without sacrificing performance or flexibility.

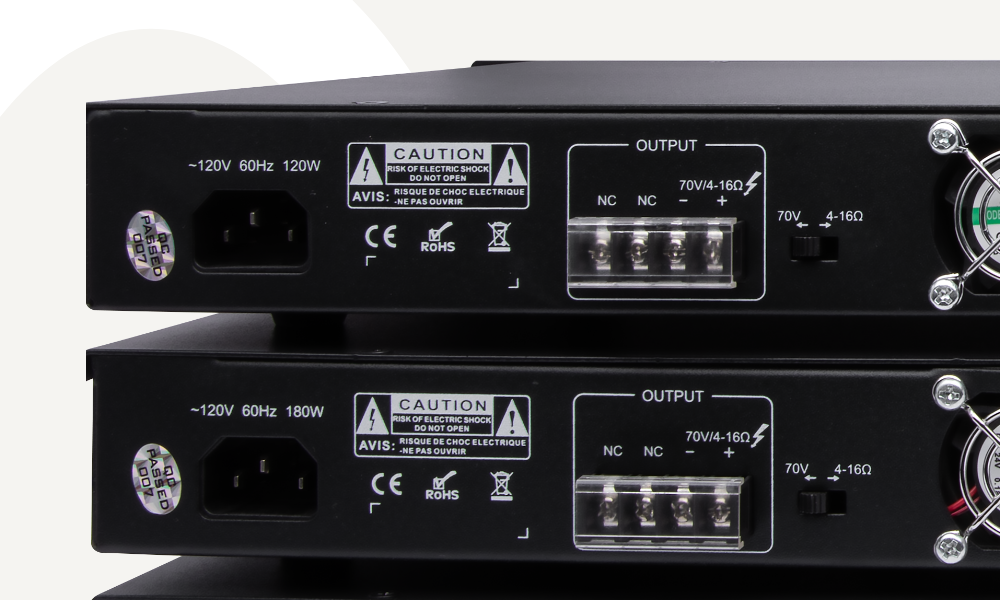

More Efficient Class D Amplification for Better Sound
Enhanced Class D amplification conserves power while delivering cleaner sound quality, even at high volumes. Reduce wasted power without compromising performance.

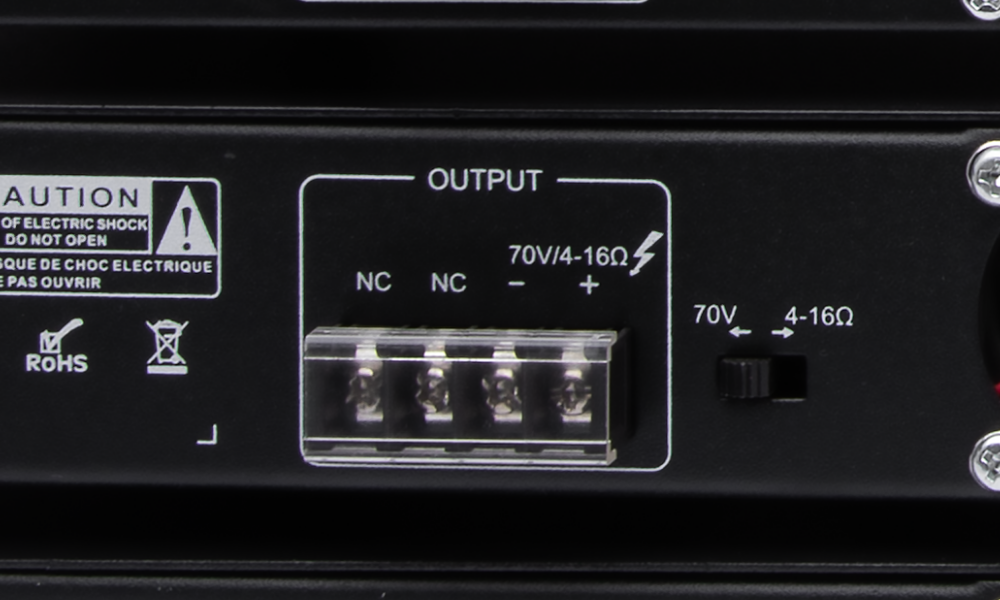

70V and 4-Ohm to 16-Ohm Capable
This versatile amplifier supports 70V systems, as well as low-impedance, 4-ohm setups. With a robust power output of up to 240 watts, it effortlessly caters to large spaces and multiple speakers.

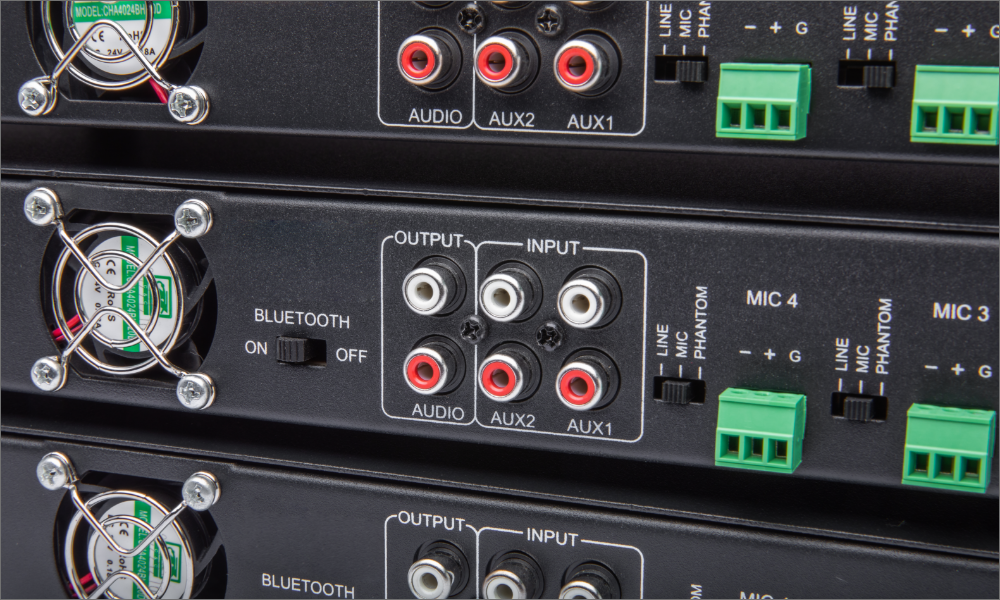

Multiple Inputs, Including Bluetooth
With up to 8 inputs, you can connect multiple microphones and analog sources for background music. Bluetooth capability allows for market-leading end user flexibility and ease of use. An integrated mixer blends microphones with any of the music audio sources.

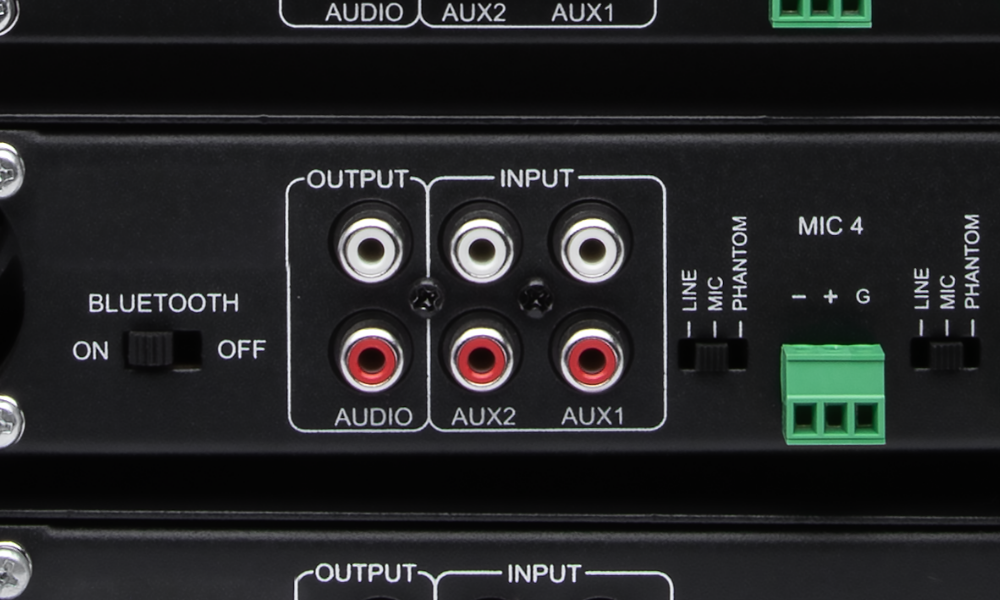

Flexible Output Options
Expanding your system is a breeze with this mixer-amplifier. It offers a balanced line output for easy daisy-chaining of a second amplifier, as well as a fixed record output and preamp loop output/amp input for external EQ or DSP integration if required.

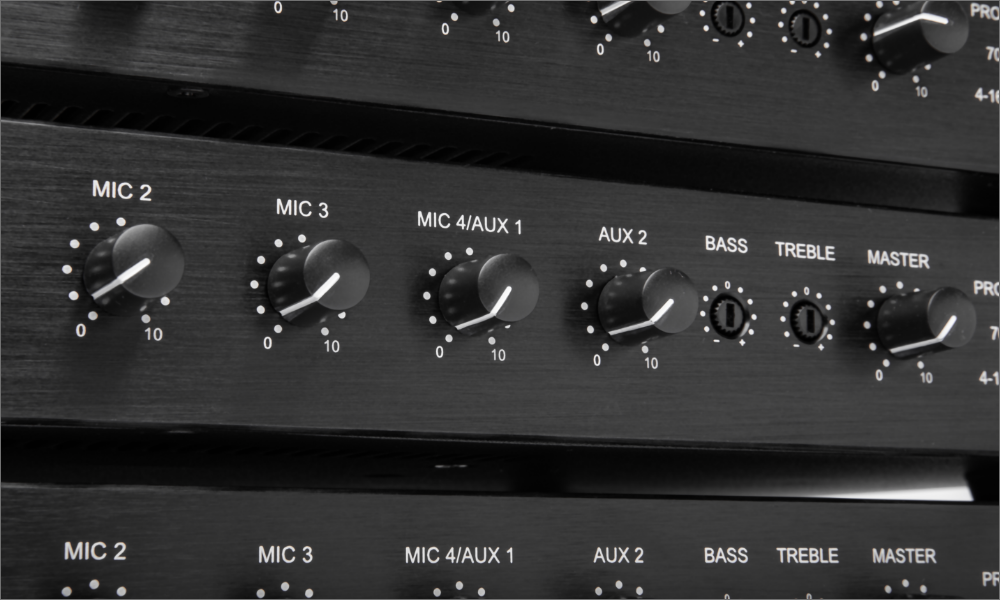

Front Panel Controls
Front controls provide the store owner or manager with quick access to Volume, Bass, Treble, Source Input, and individual Microphone level controls. To change sources, simply press one of the front panel selection buttons.

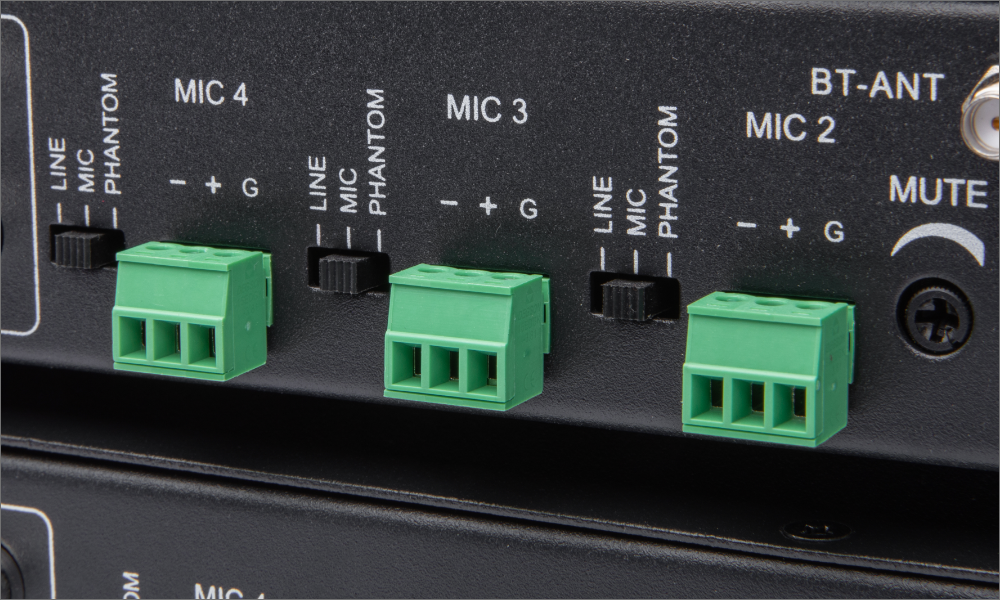

Priority Mic Inputs
Balanced XLR microphone inputs come equipped with independent priority modes, allowing for audio “ducking,” which automatically lowers the music volume when priority microphones are in use. This valuable feature is essential in restaurant and bar settings. Plus, if you’re using condenser microphones, the built-in phantom power switch ensures that your active electronics are always powered, eliminating the need for batteries.
Emergency Input
The EMC audio input is tailor-made for a fire alarm or other emergency signal when rapid communication is essential. Upon receiving an emergency signal, all other sources are automatically muted, allowing the incoming emergency signal to take precedence. While the alarm is active, Mic 1 serves as an override, so crucial safety information can be effectively conveyed to room occupants.

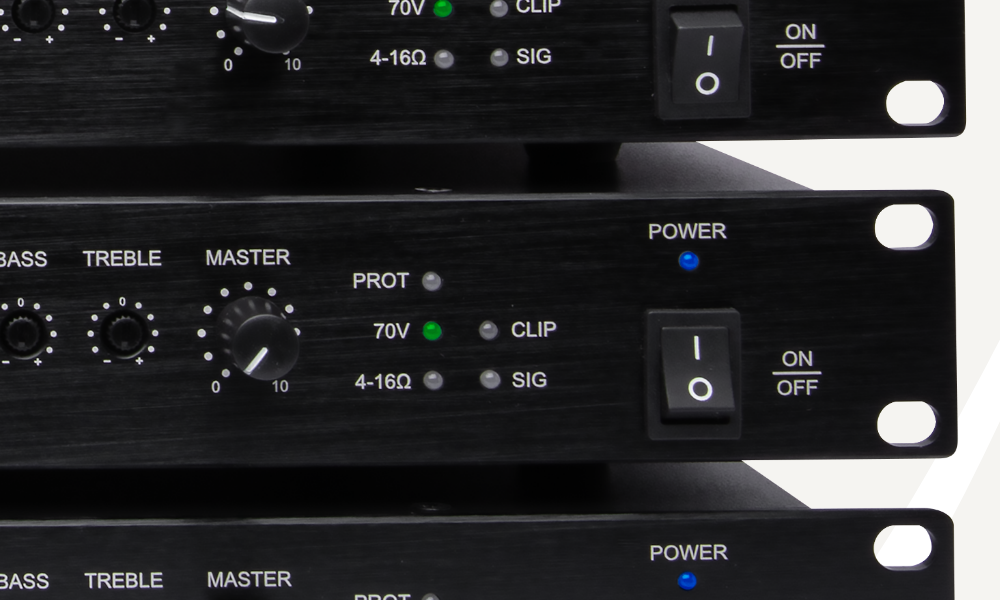

LED Indicators
The front panel LED meter prevents speaker damage caused by clipping. Like a traffic light, green is safe, while red signals a risk of clipping. Safeguarding a customer’s system from speaker output shorts is also effortless, thanks to the LED indicator that shifts from blue to red in the presence of a short.

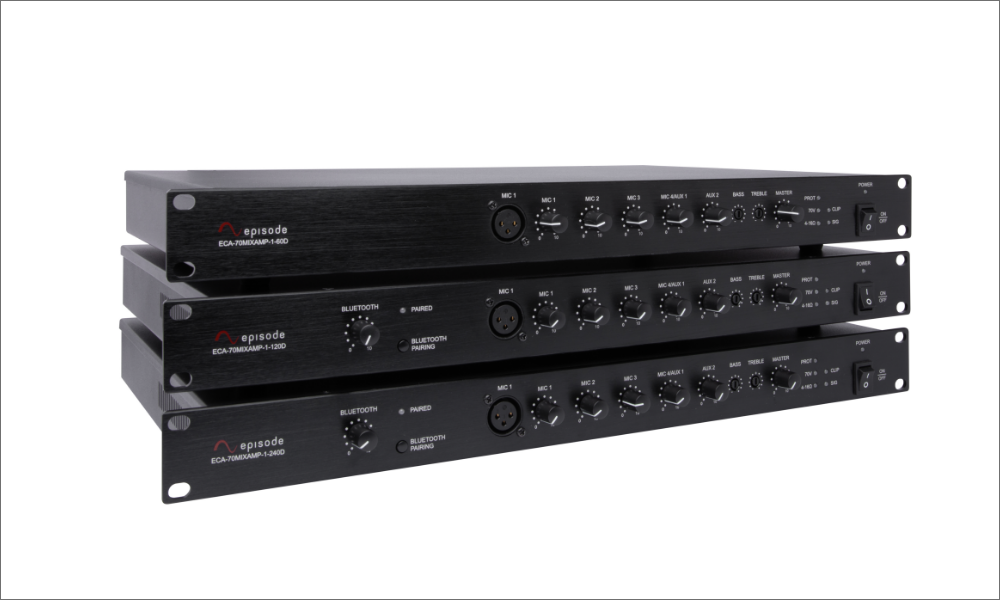

Safe, Compact Installation
Perfect for situations where rack or shelf space is limited, this amplifier’s 1RU form factor delivers robust performance in a compact design. Its side vents and rear fan allow you to stack additional equipment atop the amplifier safely, preventing overheating concerns.
2-Year Limited Warranty
This Episode® Amplifier product has a 2-Year Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modified or disassembled. Products to be repaired under this warranty must be returned to Snap One or a designated service center with prior notification and an assigned return authorization number (RA).
Additional information
| Weight | 14 lbs |
|---|---|
| Dimensions | 21.5 × 16 × 6.5 in |
