Crestron CLX-4HSW4 4 Channel High-Inrush Switch Module, 4 Feeds, 120V

The Crestron® CLX-4HSW4 is a four-channel, four-feed switch module designed for 120V lighting system applications. It installs in a CAEN or CAEN-MLO enclosure and provides control of non-dimmable lighting loads including LED, incandescent, fluorescent, magnetic low-voltage, electronic low-voltage, neon/cold cathode, and high-intensity discharge. It can also be used to switch motor loads. Individual feed capability provides four independent single-channel switches in one module space. Each channel is rated for 16 Amps, with a total module rating of 64 Amps when fed from four separate 20 Amp feeds.

Features

• Four-channel high-inrush switch module for residential and commercial lighting applications
• Installs in a Crestron® CAEN or CAEN-MLO enclosure
• Supports on/off switching of LED, incandescent, fluorescent, magnetic low-voltage, electronic low-voltage, neon/cold cathode, and high-intensity discharge lighting loads
• Also supports on/off switching of 1/2 HP motor loads
• Individual feed inputs per channel
• Rated 16 Amps per channel, 64 Amps total (using four 20 Amp feeds), at 120 Volts AC
• Built-in air gap relay per channel
• Convection cooled for silent operation
• Closure-activated override mode
• UL® 924 and CSA® C22.2 No. 141-15 listed for emergency lighting control
• Crestron system integration via Cresnet®

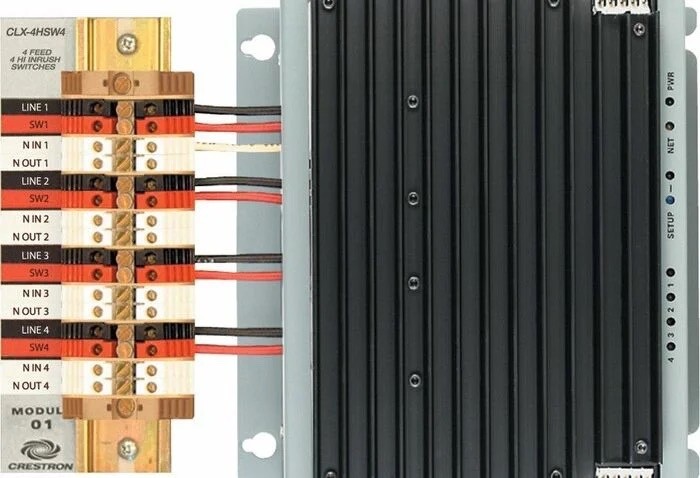

• Easy termination using a CLT-4HSW4 terminal block (sold separately)
• CEC Title 24 2013 compliant
