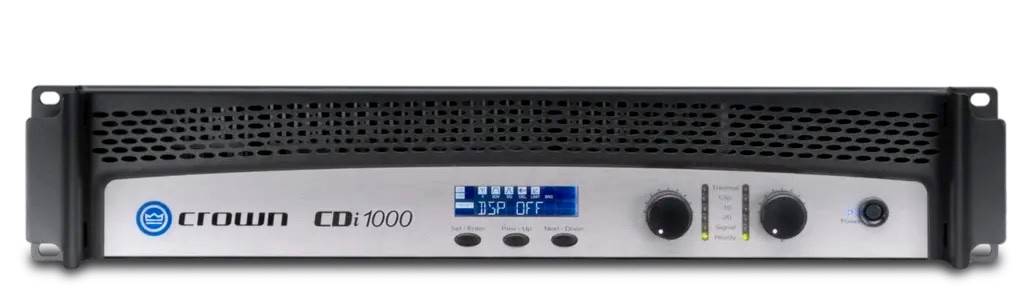

Crown Audio CDI1000 2-Channel 500W CDi Series Power Amplifier

$1,789.99

Buy From eBay

Category:

Description

The 2 RU rack-mountable Crown Audio CDi 1000 is a rugged, lightweight commercial power amplifier designed for dual-channel or bridge-mono operation in installed audio applications such as restaurants, retail stores, warehouses, offices, and more. The CDi 1000 provides accurate, uncolored sound with low distortion for excellent music and vocal reproduction. It delivers 500W per channel at 4 Ohms, and supports multiple low-impedance configurations, as well as 70V and 140V constant-voltage systems. The switch-mode universal power supply enables safe operation across the globe.

Advanced protection circuitry guards against shorted outputs, open circuits, DC, mismatched loads, general overheating, high-frequency overloads and internal faults. The CDi 1000 also has integrated DSP presets for adjustable crossover frequencies, EQ, limiting, compression, delay, and a subharmonic synthesizer. A backlit LCD displays relevant information. The removable Euroblock inputs and barrier strip outputs accommodate a variety of system setups.

Rugged and lightweight steel construction, occupies 2 RU in any standard equipment rack
Operates in dual or bridge-mono modes
Wide range of speaker impedances and outputs, including 2/4/8 Ohms and 70V or 140V
Excellent sound reproduction with low distortion
Advanced protection circuitry protects against overheating, overloads, and shorts
Integrated DSP presets for crossover frequencies, EQ, limiting, compression, delay, and a subharmonic synthesizer
Switch-mode universal power supply
Backlit LCD shows relevant information
Items Included
  • Crown Audio CDi 1000 Two-Channel Commercial Amplifier (500W/Channel at 4 Ohms, 70V/140V)
  • IEC Power Cable
  • Limited 6-Year Manufacturer Warranty

    Crown Audio CDi-1000 Specs

    Form Factor/Type
    Rackmount
    Number of Amplifier Channels
    2
    Load Impedance/Voltage Support
    4 / 8 / 16 Ohms
    Power Rating per Channel
    2x 700 W at 2 Ohms
    2x 500 W at 4 Ohms
    2x 275 W at 8 Ohms
    2x 500 W at 70 V
    Channel Bridging & Power Sharing
    1x 1400 W Bridged at 4 Ohms
    1x 1000 W Bridged at 140 V
    Performance
    Frequency Response
    20 Hz to 20 kHz +0/-1 dB
    Damping Factor
    > 500
    SNR/Noise
    100 dBA SNR (at 8 Ohms)
    THD/Distortion
    ≤ 0.5% THD
    Crosstalk
    > 70 dB (Below Rated Power, 20 Hz to 1 kHz)
    Signal Processing
    DSP
    Yes
    Connectivity
    Analog Audio I/O
    2x Block 3-Pin Input
    1x Barrier Strip Output
    Digital Audio I/O
    No
    Network I/O
    No
    USB I/O
    1x USB-B
    Phantom Power
    No
    Wireless
    No
    Power
    Input Power
    100 to 240 VAC, 50 / 60 Hz
    AC Power Connector
    1x IEC / NEMA 5-15
    Current Consumption
    6.8 A
    Power Consumption
    38 W (Idle)
    Physical
    Display
    Backlit LCD
    Rackmount Size
    2 U
    Operating Conditions
    32 to 104°F / 0 to 40°C up to 95% Humidity
    Dimensions
    19 x 12.3 x 3.5″ / 48.3 x 31.1 x 8.9 cm
    Weight
    19 lb / 8.6 kg
    Packaging Info
    Package Weight
    21.7 lb
    Box Dimensions (LxWxH)
    22.25 x 19 x 7″


Additional information

Weight 21.31 lbs
Dimensions 22.20 × 19.00 × 7.00 in
Brand

Type

Unit Type

Audio Inputs

Number of Channels

Color

Number of Inputs

Model

MPN

Features

Number of Outputs
